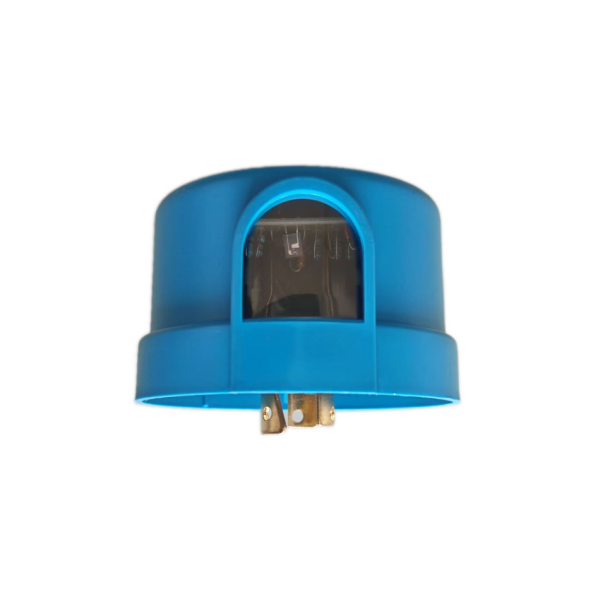

3 PIN NEMA PHOTOCONTROL BF2405EL

Contact Us>
BF2405EL PHOTOCONTROL is designed and manufactured in compliance with ANSI C136.10 and UL773 standards, utilizing multi-voltage technology to reduce inventory costs. Certified with UL and CE certifications, it enables automated control for high-pressure sodium lamps, high-pressure mercury lamps, fluorescent lamps, and LED lights. Widely used in road lighting, docks, parks, and outdoor parking lot illumination systems, this controller ensures efficient energy management and safety compliance.

BF652EL  Key Features

Rated Voltage：120/220/240/277Vac  50/60Hz

Rated Current：1000W/1800VA  8A E-Ballast@120V

Applicable TEMP.：-30～70℃



Technical Data

Rated V.

120/208/220/240/277Vac 50/60Hz

Rated  Load

 8A E-Ballast@ 120V， 1000W/1800VA

Power dissipation

<0.7W@120V (avg)

Surge protection

720J

Turn-on  Levels

16±6Lux

OFF/ON Ratio

<5  or Requirement

Time Delay

<30S

IP

IP54

Fail Model

 Fail OFF or Fail ON

Switch Times

> 5000 Times

Light Sensor

 Silicon Photoresistor

Cover Material

UL-F1   PP

Base Material

PA with Glass

Power Connection

1.5mm Brass

Ambient Temp.

-30～70℃

Insulation

3000V 60Hz  60s

Certificate

UL  CE

Warranty

3 years

Boundary dimension

 ∅82x55mm



Installation



●Repair replacement installation: Remove the damaged light controller, replace it with a new light controller, press down and turn the light controller clockwise to lock it on the socket.

●New installation: First install the matching socket, and then install a new light controller to insert the socket and lock clockwise.

●Test

After confirming that the wiring is correct, turn on the power supply. The PHOTOCONTROL will light up the lamp for about 30 seconds and then turn off. If it is in the day, put your hand or a black bag in front of the PHOTOTCONTROL's light port. The lamp will light up after about 30 seconds. Move away your hand or bag and the lamp will turn off after about 30 seconds.
